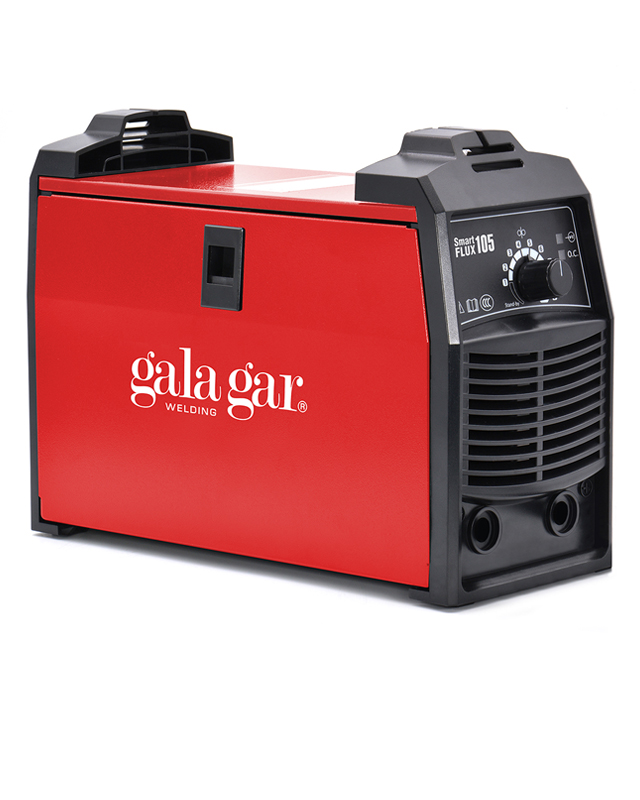

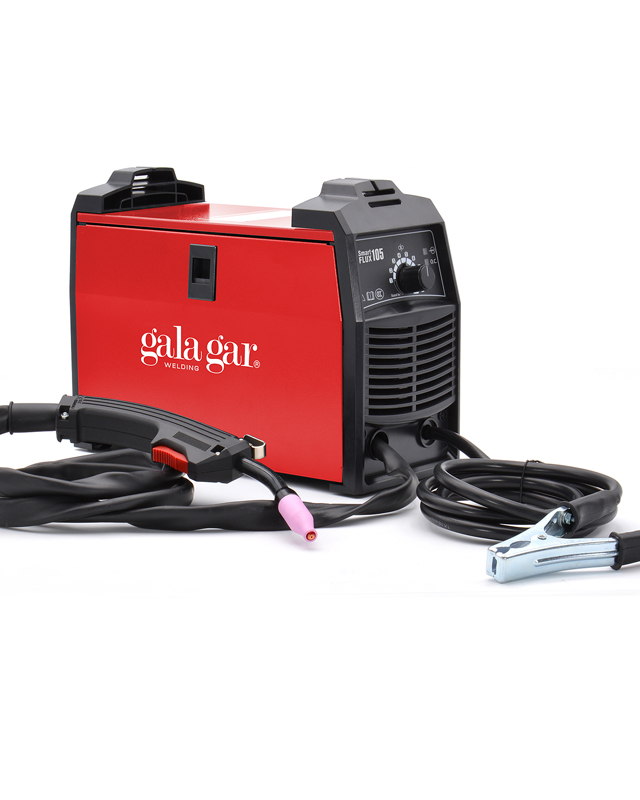

Arko FLUX 105

Compact cored wire welding equipment

Ref.22300105AF

The ARKO FLUX equipment allows welding with using the FCAW (Flux-Cored Arc Welding) process, which is a continuous tubular wire welding process. This process is used with the protection of flux contained within the tubular wire, eliminating the need for shielding gas. It is a faster process and easier to operate than electrode welding. Suitable for welding carbon steels, which is the most widely used metal in modern industry.

Advantages:

  • Much easier application compared to conventional electrode welding. No constant need to change filler material.
  • Portable equipment, weighing 5.4 kg with the spool and gun included.
  • Very simple and intuitive regulation.
  • No need for gas.
  • Single-phase machine with connection to a domestic outlet.
  • 1 kg wire spool.
  • Welds thicknesses up to 4 mm.
Basic characteristics FLUX 105
Supply voltage (U1 50/60 Hz) (1F) 230V ±15%
Maximum primary intensity (I1max ) 13.4 A
Effective primary intensity(I1eff) 6 A
Continuous regulation range I2min-I2max 20-100 A
Maximum welding intensity I2max. 90 A / 20%
Nominal welding current (100%.) 45 A
Welding voltageU2mín-U2máx. 16.3-19 V
Applicable thread diameter 0.8 mm. (Tubular thread)
Thermal isolation F (155º C)
Degree of protection IP21S
Ventilation Forced
Overall dimensions ( L x A x H ) mm. 318 x 135 x 240
Weight 5.4 Kg.
