Gala 1600 Syner

Synergic equipment for MMA electrode welding

Ref.22300160GS

Description:
Portable equipment for DC stick electrode MMA and DC TIG welding.
High performance inverter IGBT technology.

Application:
Professional use; welding with rutile-coated (MMA), basic, and stainless steel electrodes up to ø 3.25 mm. TIG welding
with smooth arc ignition via the Lift Arc system, with manual gas control.

Power supply:
1Ph. 230V ±10% – 50/60Hz

Key Features:

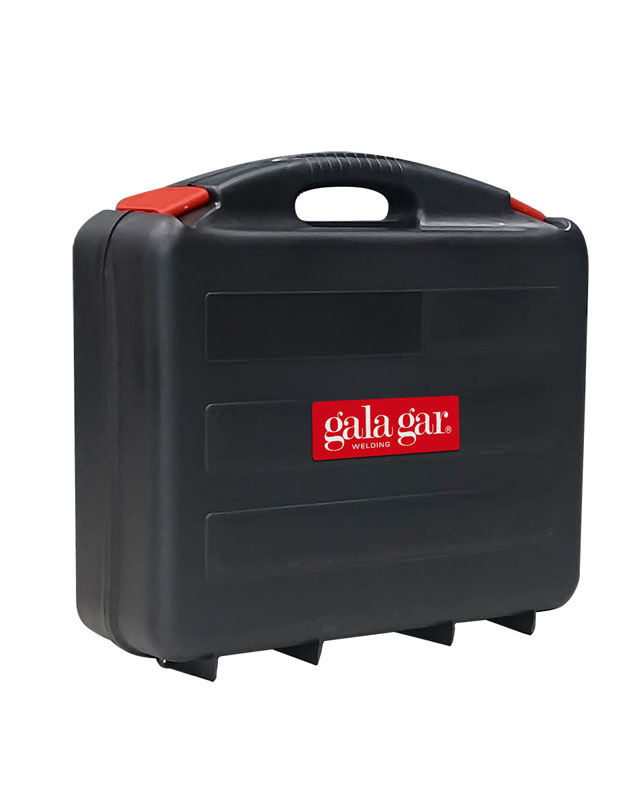

– Highly portable with an ergonomic carrying handle, very light weight (3.9 kg), and compact dimensions.
– Advanced digital control system.
– 4 x 2 cm color LCD screen with LED backlighting.
– Adjustable pulsed MMA mode, 1–5 Hz.
– Adjustable Hot Start, 0–10 (aids in arc initiation)
– Adjustable Arc Force, 0–10 (stabilizes the arc and weld quality).
– DC TIG welding with Lift-Arc technology.
– 35/50 mm² welding connectors.

Basic technical characteristics
Supply voltage	1 Ph 230V ± 15% – 50/60 Hz.
Regulation range	20–160 A
Duty Cycle at 40°C	15 to 160 A
TIG Duty Cycle at 40°C	160 A / 35%
X-hour electrodes	35 – Ø 3.25 mm.
Maximum power consumption	5.8 kVA
No-load voltage	66 V.
Weight	3.9 kg.
Dimensions (width x height x length)	135x242x338 mm.
